UCARD 100

Description

UCARD 100 is the portable multi-channel ECG with GSM module for telemedicine. The latest signal processing technology, highly advanced design, original software and integrated telemetry system make UCARD 100 extremely flexible and cost-effective ECG for hospitals, ambulances, first aid and home visits.

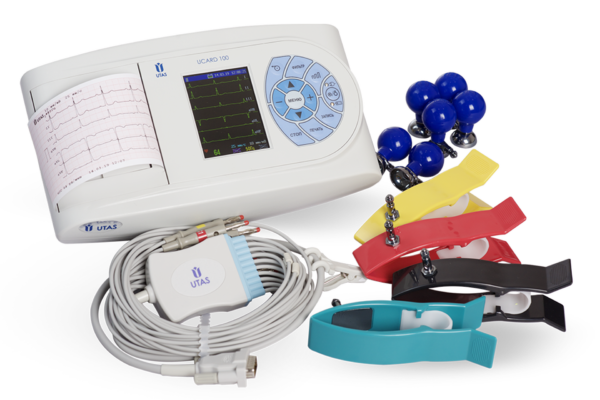

UCARD 100 features simultaneous 12 leads acquisition and 3, 6 and 12 channel printout with analysis and interpretation. Electrocardiograph is portable and lightweight without compromising the diagnostic quality of the ECG. The unit is easy to use with a carrying case whenever and wherever required.

Full description:

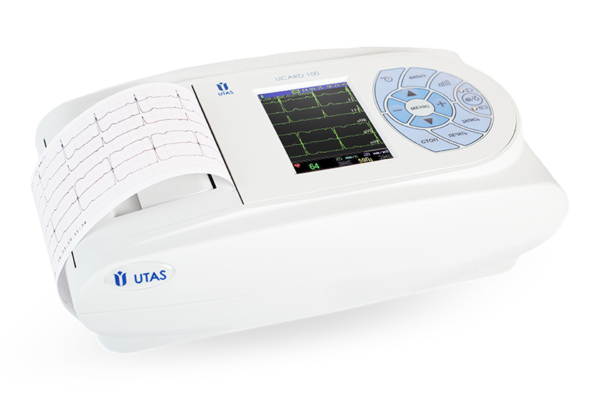

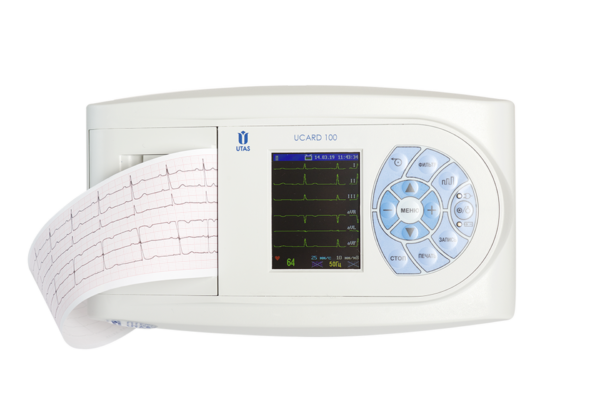

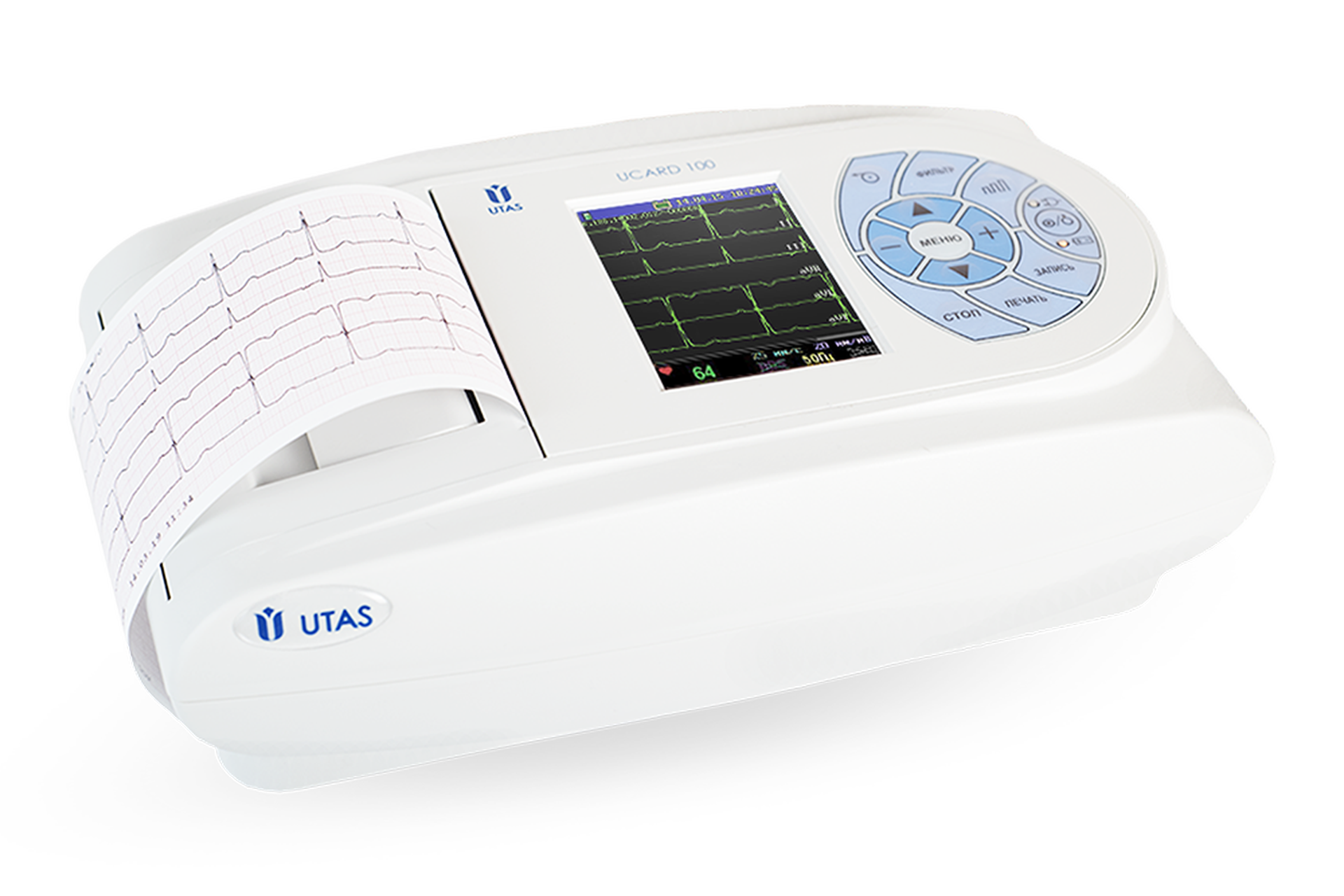

Electrocardiograph UCARD 100 combines compact size and advanced functionality: simultaneous recording of the 12 standard leads, color LCD display, thermal printer, ECG analysis and interpretation, memory, built-in battery, telemetry ECG transmission system.

Built-in data transfer telemetry module allows transfer the registered ECG via wire and wireless digital communication channels to a telemedicine consultation center equipped with UNET Telemetry System, and promptly receives a highly qualified cardiologist advice. ECG registration and diagnostic quality ECG analysis regardless of distance and location allows patient receive a remote professional advice as well as maintain digital database.

Specifications:

• Simultaneous 12 lead acquisition
• Lead registration by Nehb and Slopak
• Built-in telemetry system for data transmission
• Formation of pre-medical conclusion
• Mode of continuous heart rate monitoring
• 12-lead ECG storage in non-volatile memory. Ability of further review and print
• ECG transmission in accordance with requirements of standard EN1064 (SCP-ECG)
• Patients and doctors data entry in ECG file for telemetry transmission
• Special software for database management
• Paper speed – 5, 10, 25, 50 mm/s
• Input impedance > 10 Mom
• Digital filters of 50 Hz and 35 Hz
• Automatic drift compensation
• Common mode noise rejection > 100 dB.
• Heart rate indication 20 – 280 1/min
• Automatic ECG printout and transmission function
• Effective defibrillation protection
• High-resolution color LCD display
• High-resolution, easy paper loading thermal printer 80 mm
• Configuration of ECG printing format
• Power supply AC 220 V, built-in battery or car electrical system
• Built-in rechargeable battery with 4 hours of autonomic work
• Ability to information input using a standard keyboard.
